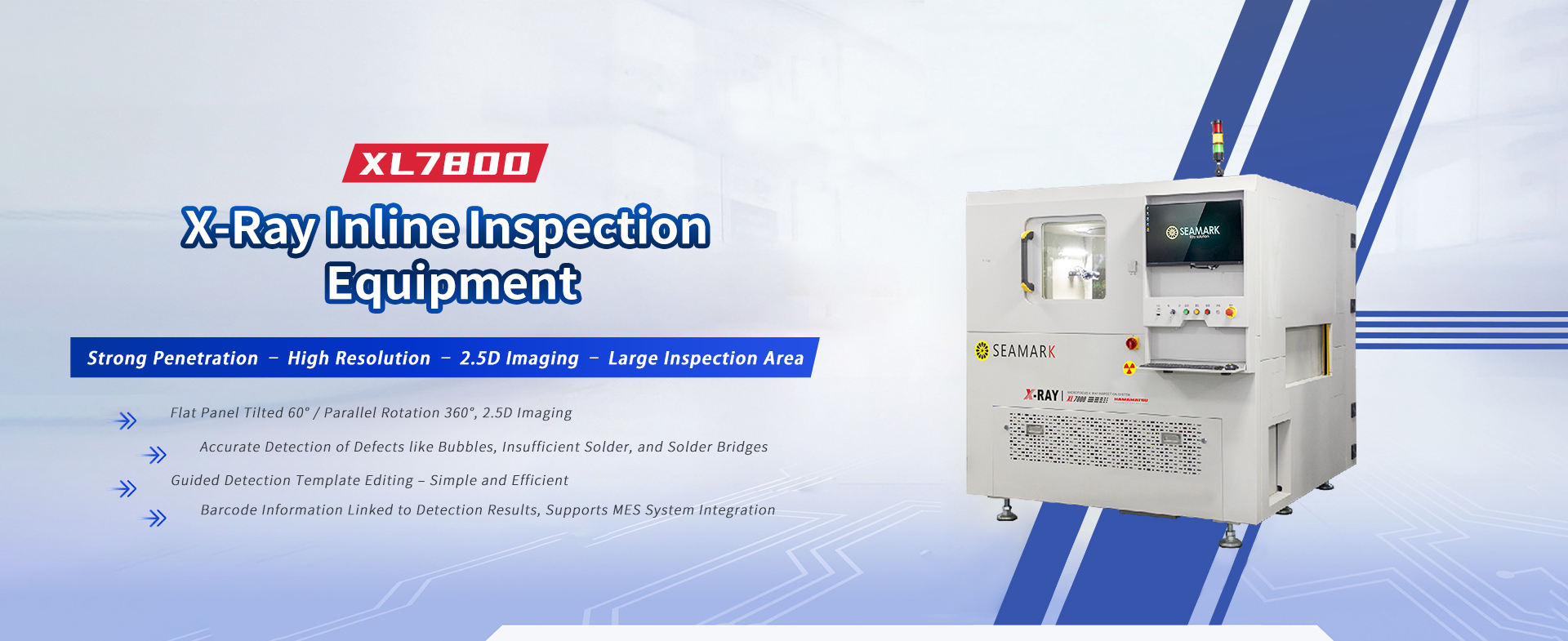

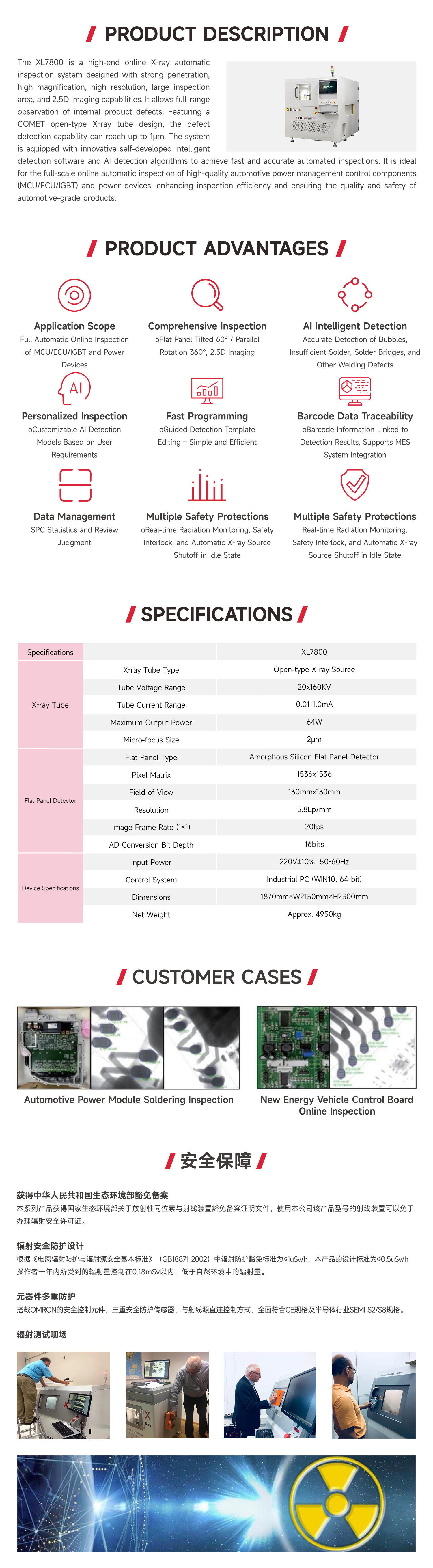

XL7800 is a high-end inline X-ray automatic inspection system with strong penetration capability, high magnification, high resolution, large inspection area, and 2.5D imaging. It allows comprehensive observation of internal defects in products. Featuring open X-ray tube design,its defect Inspection capability can reach up to 1μm.The system is equipped with innovative self-developed intelligent inspection software and Al Inspection algorithms,enabling fast and precise automatic inspection. lt is ideal for full inline automatic inspection of automotive power management controlcomponents (MCU/ECU/lGBT) and power devices, improving Inspection efficiency and ensuring product quality and safety for automotive-grade components.
| 型号 | ||
|---|---|---|
| X-Ray Tube | X-ray Tube Type | Open X-ray source |
| Tube Voltage | 20-160KV | |
| Tube Current | 0.01-1.0mA | |
| Maximum Output Power | 64W | |
| Micro Focus Size | ＜2μm | |
| Flat Panel Detdector | Flat Panel Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 1536×1536 | |
| Field of View | 130mm×130mm | |
| Resolution | 5.8Lp/mm | |
| Image Frame Rate (1×1) | 20fps | |
| AD Conversion Bit Depth | 16bits | |
| Equipment Specifications | Input Power | 220V±10% 50-60Hz |
| Control System | Industrial Computer Win10 64 bits | |
| Dmensions | L1870mmxW2150xH2300mm | |
| Net Weight | 4430KG |
