产品介绍

PRODUCT INTRODUCTION

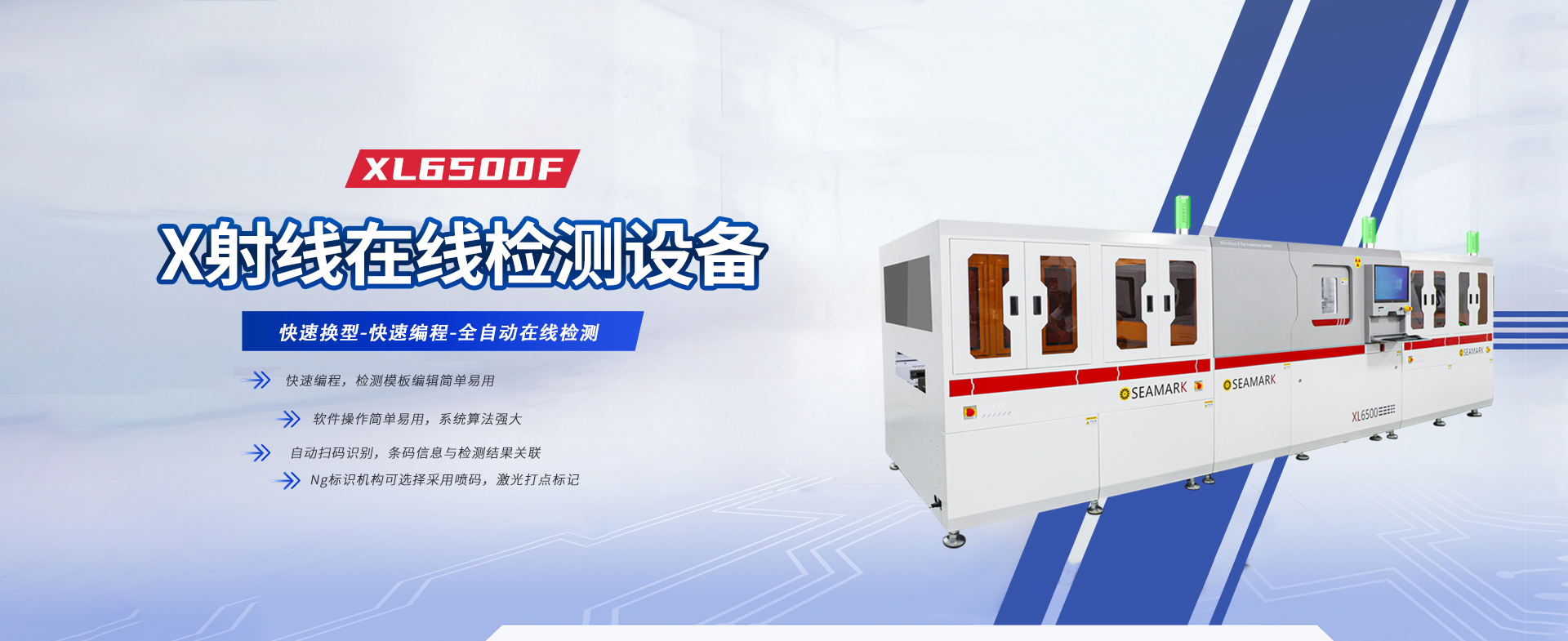

XL6500F is an inline precision micro-focus X-ray inspection device designed for automotive FPC(Flexible Printed Circuit) boards, specifically for the automatic inspection and judgment of nickel pads or designated components in automotive applications.

产品特点

PRODUCT FEATURES

Simplified operation

The software is simple and easy to use, and the system algorithm is powerful
Automatic scanning recognition

Strong automatic code scanning and recognition ability, fast decoding speed
Three-stage design

The three-stage design can be freely selected according to customer needs, one, two or three stages, compatible with a variety of site requirements
Fast programming

Memory programming, automatic recording of inspection motion path, accurate positioning, convenient for repeated inspection

产品参数

SPECIFICATION

型号
X-Ray Tube	X-ray Tube Type	Reflective Sealed Micro-focus X-ray Source
	Tube Voltage	0-90KV
	Tube Current	0-200μA
	Maximum Output Power	8W
	Micro Focus Size	15μm
Flat Panel Detector	Flat Panel Type	Amorphous Silicon Flat Panel Detector
	Pixel Matrix	1536×1536
	Field of View	130mm×130mm
	Resolution	5.8Lp/mm
	Image Frame Rate (1×1)	20fps
	AD Conversion Digits	16bits
Equipment Specifications	Equipment Specifications	250-500mm
	Control System	Industrial Computer (WIN10, 64-bit)
	Input Power	220V 10A/110V 15A 50-60HZ
	Net Weight	3180KG (Main Inspection Section)
	Dimensions (1.5m Board)	L6200mmxW1600xH2100mm
	Dimensions (2m Board)	L7700mmxW1600xH2100mm
