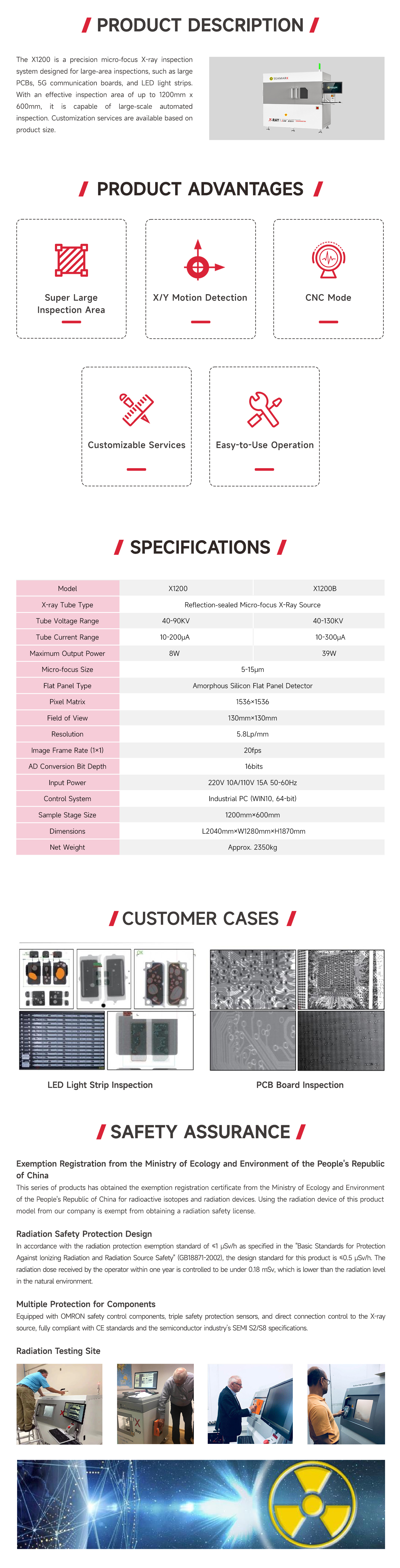

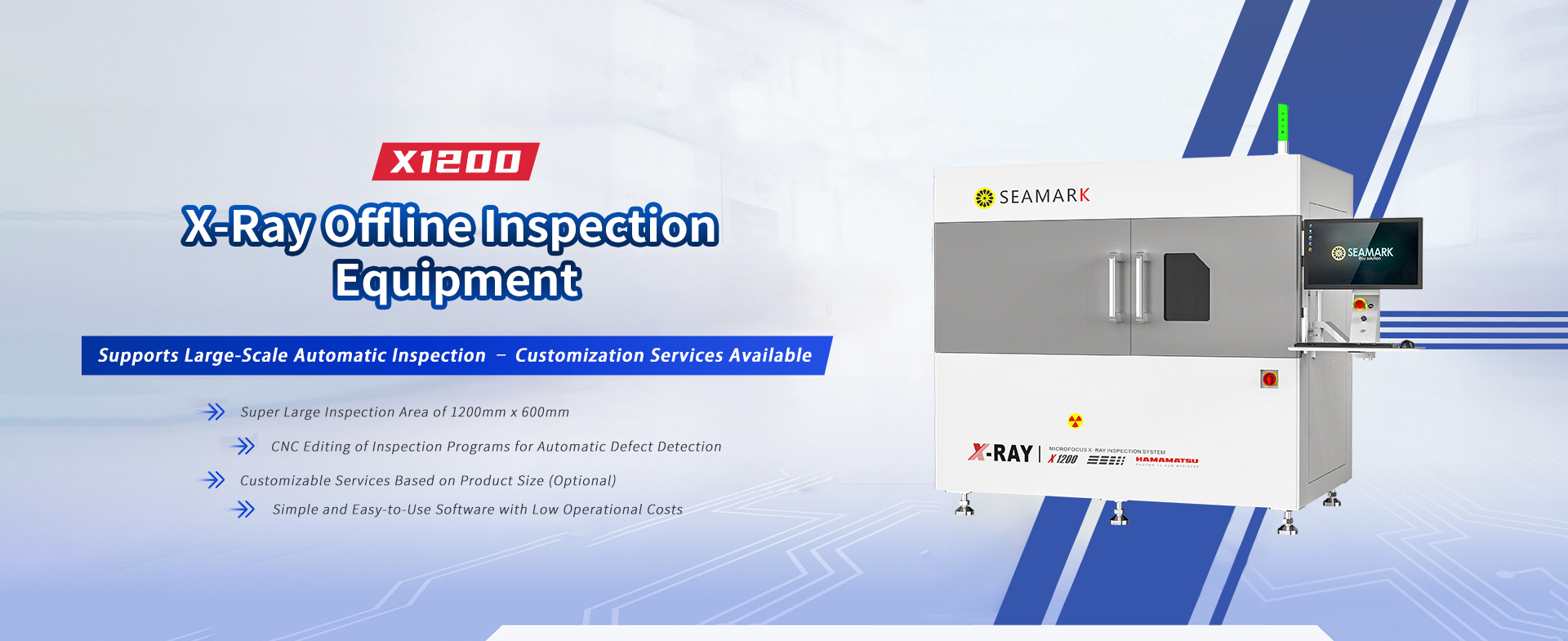

X1200 is a precision micro-focus X-ray inspection device for ultra-large area inspections such as large PCB boards, 5G communication motherboards, LED light strips, etc. lts effective inspection area can reach 1200mmx600mm, which can realize large-scale automatic inspection and accept customized services according to different product sizes.
| 型号 | X1200 | |
|---|---|---|
| X-Ray Tube | X-ray Tube Type | Reflective Sealed Micro-focus X-ray Source |
| Tube Voltage | 40-90KV /40-130KV | |
| Tube Current | 0-200μA/10-300μA | |
| Maximum Output Power | 8W/39W | |
| Micro Focus Size | 5μm(4W) - 40μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 1536×1536 | |
| Field of View | 130mmx130mm | |
| Resolution | 5.5Lp/mm | |
| Image Frame Rate (1×1) | 20fps | |
| AD Conversion Digits | 16bits | |
| Equipmenet Specifications | Input Power | 220V 10A/110V 15A 50-60Hz |
| Control System | Industrial Computer Win10 64 bits | |
| Platform Size | 1200mm×600mm | |
| Dimensions | L2040mmxW1280mm×H1870mm | |
| Net Weight | 2350KG |
