产品介绍

PRODUCT INTRODUCTION

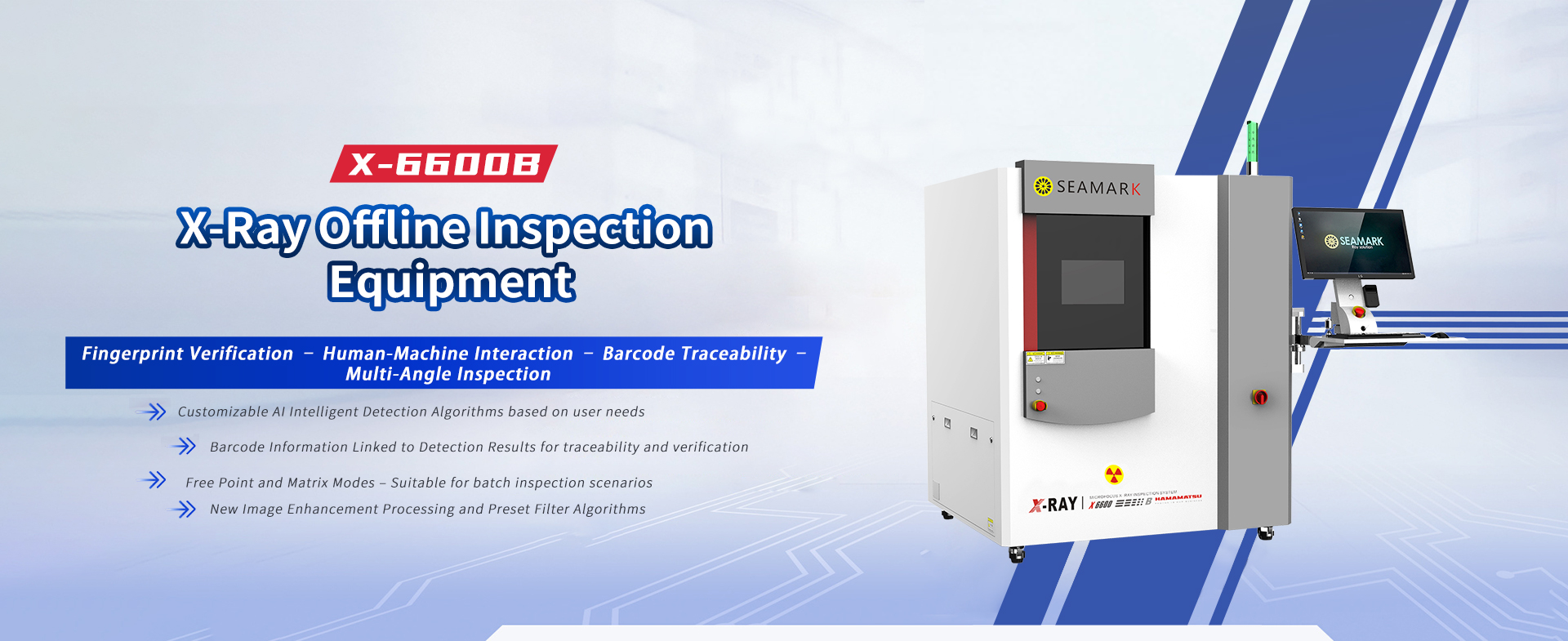

X6600B is a universal offline precision micro-focus X-ray intelligent inspection equipment, equipped with innovative self-developed intelligent inspection software and a new generation of image algorithms. lt adopts a high-voltage X-ray tube design with strong penetration, high image quality, easy to find defects, and a wider range of applications. One-button automatic opening and closing of the

movable door facilitates personnel operation. Suitable for the inspection of offline products in various factories.

产品特点

PRODUCT FEATURES

Fingerprint function

Fingerprint verification, authorized personnel to control the device
Rotating stage

The X and Y axes of the stage are driven by high-precision screws to ensure detection accuracy
T-axis tilt photo detection

When conventional vertical detection cannot meet the requirements, the T-axis tilt detection function can be used to provide a more comprehensive detection range.
Multiple security protections

Real-time monitoring of radiation values to provide multiple protections for the operator's personal safety

产品参数

SPECIFICATION

型号	X-6600B
X-Ray Tube	X-ray Tube Type	Reflective Sealed Micro-focus X-ray Source
	Tube Voltage	40-130KV
	Tube Current	10-300μA
	Maximum Output Power	39W
	Micro Focus Size	5μm(4W) - 40μm
Flat Panel Detector	Flat Panel Type	Amorphous Silicon Flat Panel Detector
	Pixel Matrix	1536×1536
	Field of View	130mmx130mm
	Resolution	5.5Lp/mm
	Image Frame Rate (1×1)	20fps
	AD Conversion Digits	16bits
Equipment Specifications	Input Power	220V 10A 50-60Hz
	Control System	Industrial Computer Win10 64 bits
	Platform Size	620mmx620mm
	Dimensions	L1380mm×W1425×H1951mm
	Net Weight	1800KG

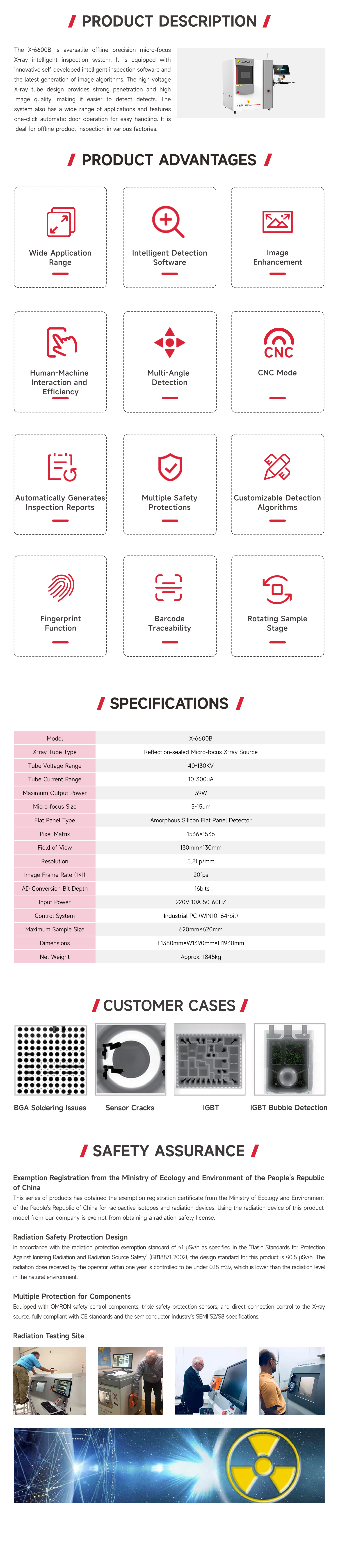

产品详情

Product Details
