产品介绍

PRODUCT INTRODUCTION

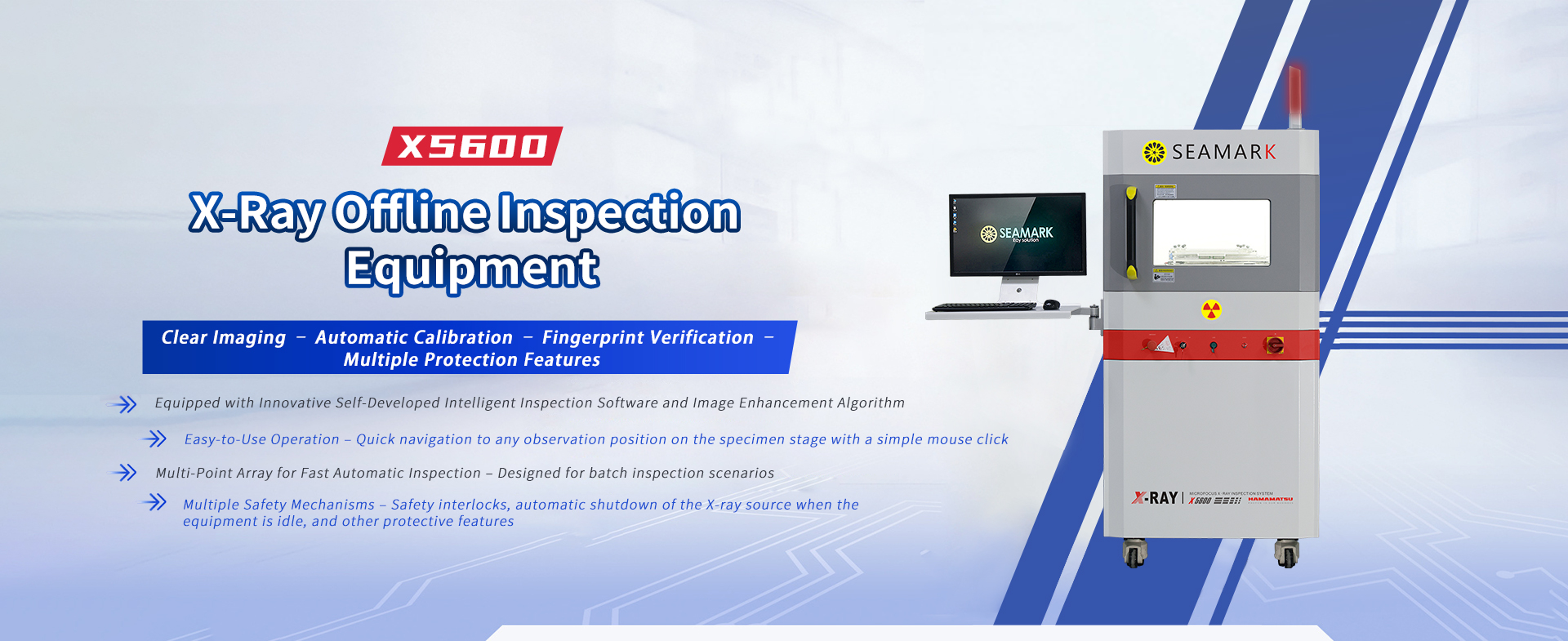

X5600 is a small precision micro-focus X-ray intelligent inspection device, equipped with innovative self-developed intelligent inspection software and a new generation of image algorithms. lt has clearer imaging, is easy to operate, and occupies a small space.lt is suitable for R&D laboratories. offices, quality inspection rooms and other places. lt is the preferred equipment for X-ray inspection of micro-precision

devices.

产品特点

PRODUCT FEATURES

Equipment miniaturization

The equipment is miniaturized and easy to place and use
High resolution

High-resolution design to obtain the best image in a very short time
Tilt/rotate multiple angles

It has tilt detection function, can observe device features from multiple angles, and is equipped with a rotating manipulator that can rotate 360 degrees to take pictures, so that defects can be observed without blind spots.
CNC inspection

CNC detection mode, fast and automatic detection for multi-point arrays

产品参数

SPECIFICATION

型号	X5600
X-Ray Tube	X-ray Tube Type	Reflective Sealed Micro-focus X-ray Source
	Tube Voltage	0-90KV
	Tube Current	0-200μA
	Maximum Output Power	8W
	Image Frame Rate (1×1)	15μm
Flat Panel Detector	Flat Panel Type	Amorphous Silicon Flat Panel Detector
	Pixel Matrix	1536×1536
	Field of View	130mmx130mm
	Resolution	5.5Lp/mm
	Image Frame Rate (1×1)	20fps
	AD Conversion Digits	16bits
Equipment Specifications	Input Power	220V 10A 50-60HZ
	Control System	Industrial Computer Win10 64 bits
	Maximum Sample Size	280mmx320mm
	Dimensions	L850mmxW1000mmxH1700mm
	Net Weight	750KG

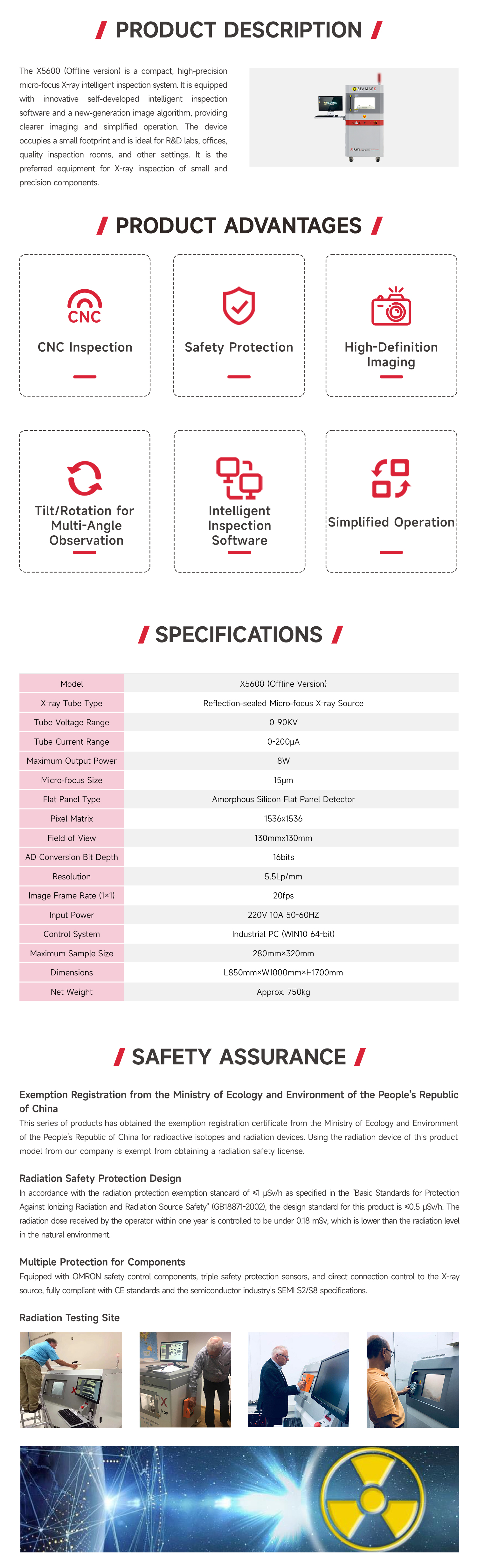

产品详情

Product Details
