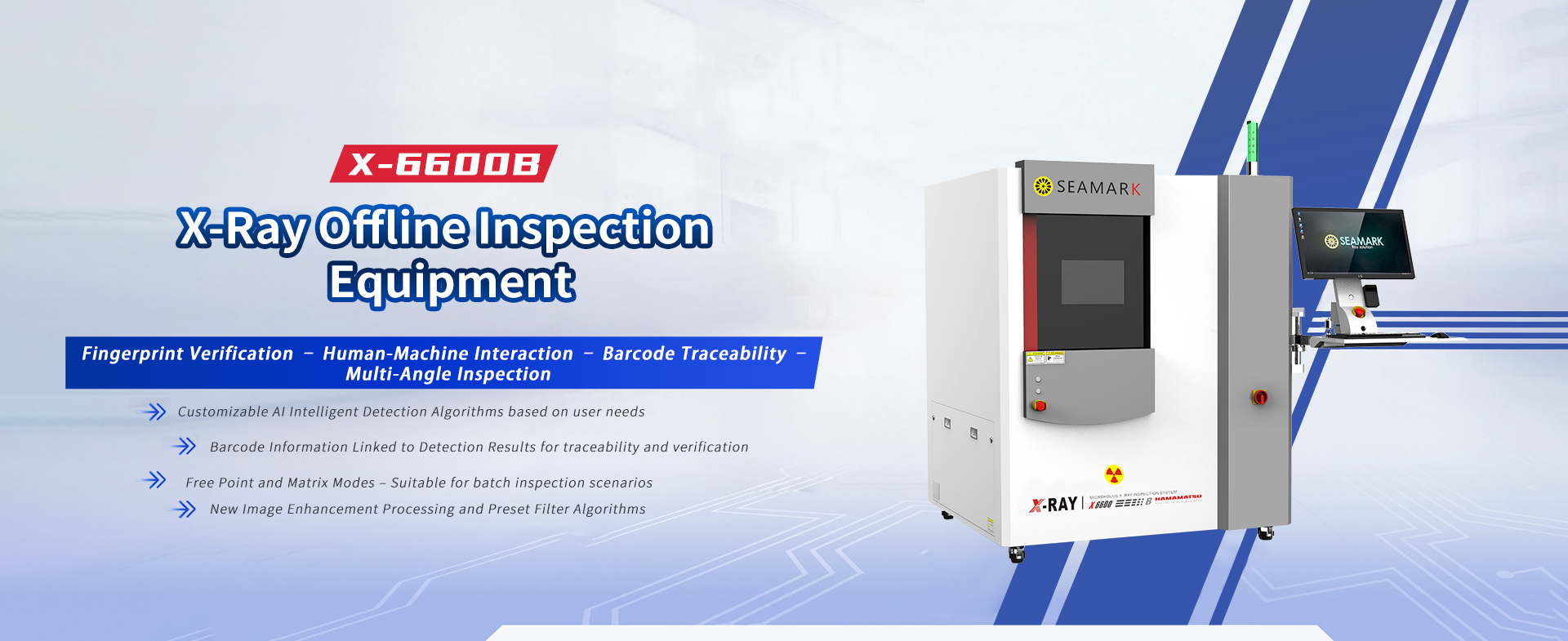

X-6600B X-Ray Offline Inspection Equipment

产品介绍

PRODUCT INTRODUCTION

X6600B is a universal offline precision micro-focus X-ray intelligent inspection equipment,equipped with innovative self-developed intelligent inspection software and a new generation of image algorithms.lt adopts a high-voltage X-ray tube design with strong penetration, high image quality, easy to find defects, and a wider range of applications. One-button automatic opening and closing of the movable door facilitates personnel operation. Suitable for the inspection of offline products in various factories.


产品特点

PRODUCT FEATURES
  • Fingerprint function
    Fingerprint verification, authorized to control the device
  • Rotatable platform
    The X and Y axes of the loading platform are driven by high precision screw rod to ensure the inspection accuracy
  • T-axis tilt photo inspection
    When the conventional vertical inspection cannot meet the requirements, the T-axis tilt inspection function can be used to inspect a more comprehensive range
  • Multiple safety protection
    Real-time monitoring of radiation values, multiple protection of the operator's personal safety

产品参数

SPECIFICATION
型号
X-Ray Tube X-ray Tube Type Reflective Sealed Micro-focus X-ray Source
Tube Voltage 40-130KV
Tube Current 10-300μA
Maximum Output Power 39W
Micro Focus Size 5μm(4W)-40μm
Flat Panel Detector Flat Panel Type Amorphous Silicon Flat Panel Detector
Pixel Matrix 1536×1536
Field of View 130mm×130mm
Resolution 5.8Lp/mm
Image Frame Rate (1×1) 20fps
AD Conversion Digits 16bits
Equipment Specifications Dimensions L1380xW1425xH1951mm
Input Power 220V 10A 50-60HZ
Platform Size 620mm×620mm
Control System Industrial Compiter Win10 64bits
Net Weight 1800KG
