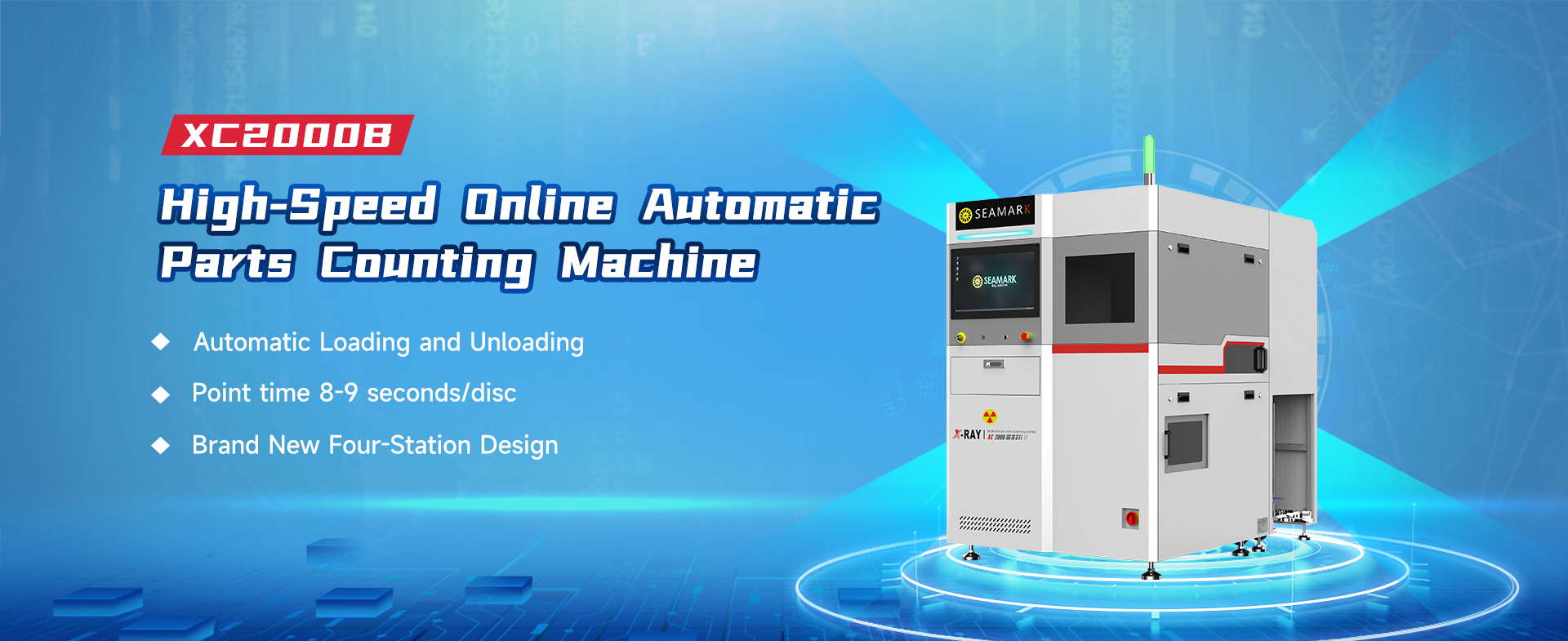

XC2000 (high-speed version) is a high-speed inline automatic counting machine with innovative self-developed Al intelligent counting algorithm software, a counting speed of 8-9 seconds/tray, and a turntable with four working positions to achieve automatic loading, code reading, counting, labeling, review and unloading at high speed. lt is designed for the electronics manufacturing industry to help SMT smart warehousing realize fully automatic material counting, which can greatly improve work efficiency and save manpower investment.
| 型号 | XC2000(B) | |
|---|---|---|
| X-Ray Tube | X-ray Tube Type | Reflective Sealed Micro-focus X-ray Source |
| Tube Voltage | 30-80KV | |
| Tube Current | 200-700 μA | |
| Maximum Output Power | 56 W | |
| Micro Focus Size | 33μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 3072×3072 | |
| Field of View | 427mm×427mm | |
| Resolution | 3.6Lp/mm | |
| Image Frame Rate (1×1) | 1fps | |
| AD Conversion Digits | 16bits | |
| Equipment Specifications | Reel Size | 7”-15”Tape Reel |
| Reel Height | 8-80mm | |
| Minimum Components | 01005 | |
| System Connection | MES/ERP/WMS etc. | |
| Input Power | 220V 10A 50-60HZ | |
| Control System | Industrial Computer WIN 64 Bits | |
| Dimensions | L1894mmxW1864mmxH2100 | |
| Net Weight | 2200KG |
