产品介绍

PRODUCT INTRODUCTION

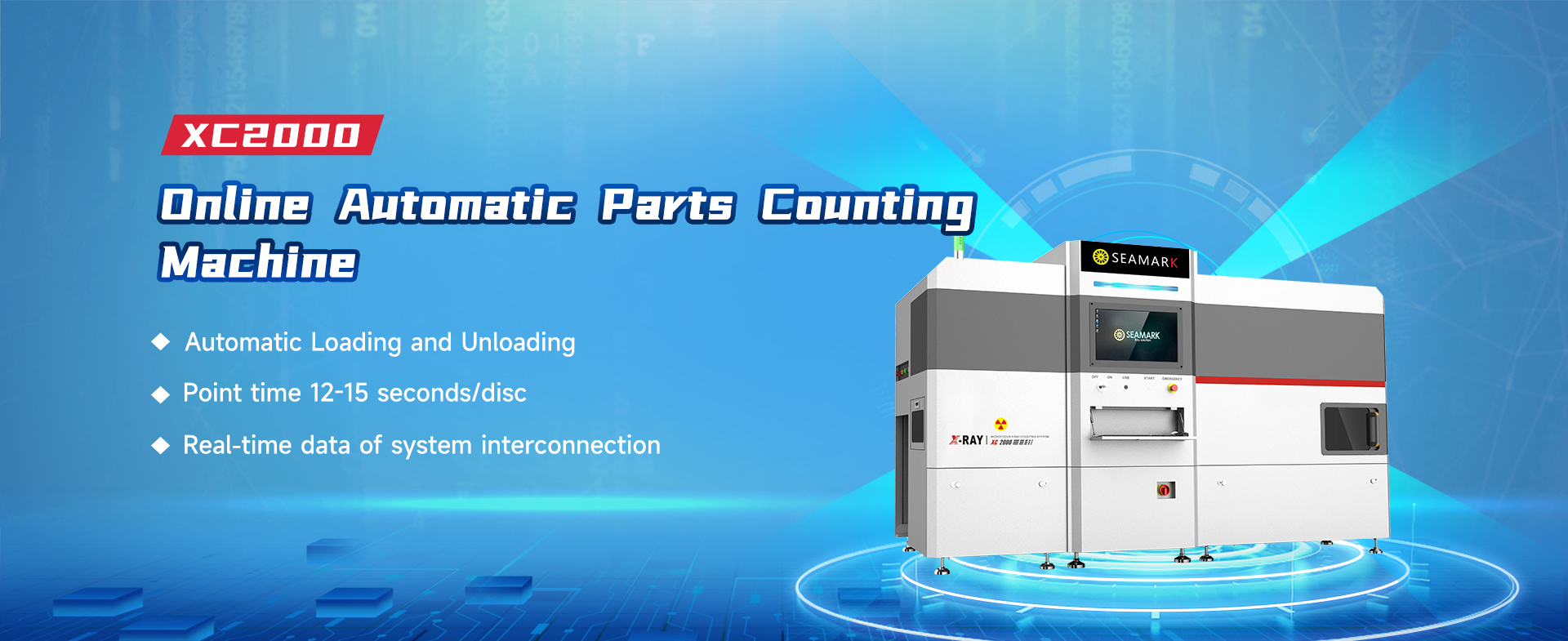

XC2000 is an inline automatic counting machine with innovative self-developed Al inteligent counting algorithm software, a counting speed

of 12~15 seconds/reel, accurate calculation of the number of materials in the reel, and support for a variety of feeding methods such as

fully automatic or manual. The equipment can automaticaly read codes, label, and review, helping SMT smart warehousing to achieve fully

automatic material inventory, improve work efficiency, and save manpower investment.

产品特点

PRODUCT FEATURES

Can detect 7-15 inch trays

Supports 7-15 inch trays, suitable for all kinds of patch components, SMD devices above 01005
Multiple loading methods

Supports fully automatic loading by trolley, AGV or manual loading
Global Materials Database

About 120,000 types of material information have been included. The cloud collects new material types and image data from around the world, and regularly updates the AI model for material counting every week.
System connection

Automatic statistical output of material point data, and real-time interactive data connection with MES/ERP/WMS and other systems

SPECIFICATION

型号	XC2000
X-Ray Tube	X-ray Tube Type	Amorphous Silicon Flat Panel Detector
	Tube Voltage	30-80KV
	Tube Current	200-700 μA
	Maximum Output Power	56W
	Micro Focus Size	33μm
Flat Panel Detector	Flat Panel Type	Amorphous Silicon Flat Panel Detector
	Pixel Matrix	3072×3072
	Field of View	427mm×427mm
	Resolution	3.6Lp/mm
	Image Frame Rate (1×1)	1fps
	AD Conversion Digits	16bits
Equipment Specifications	Reel Size	7”-15”Tape Reel
	Reel Height	8-80mm / 60-80mm (manual counting)
	Minimum Components	01005
	System Connection	MES/ERP/WMS etc.
	Input Power	220V 10A 50-60HZ
	Control System	Industrial Computer WIN 64 Bits
	Dimensions	L3100mmxW1600mmxH2100mm
	Net Weight	2200KG

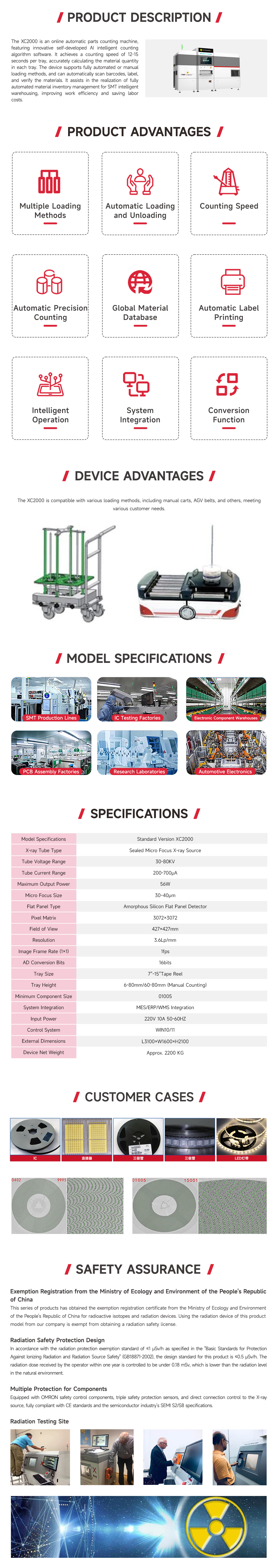

Product Details
