产品介绍

PRODUCT INTRODUCTION

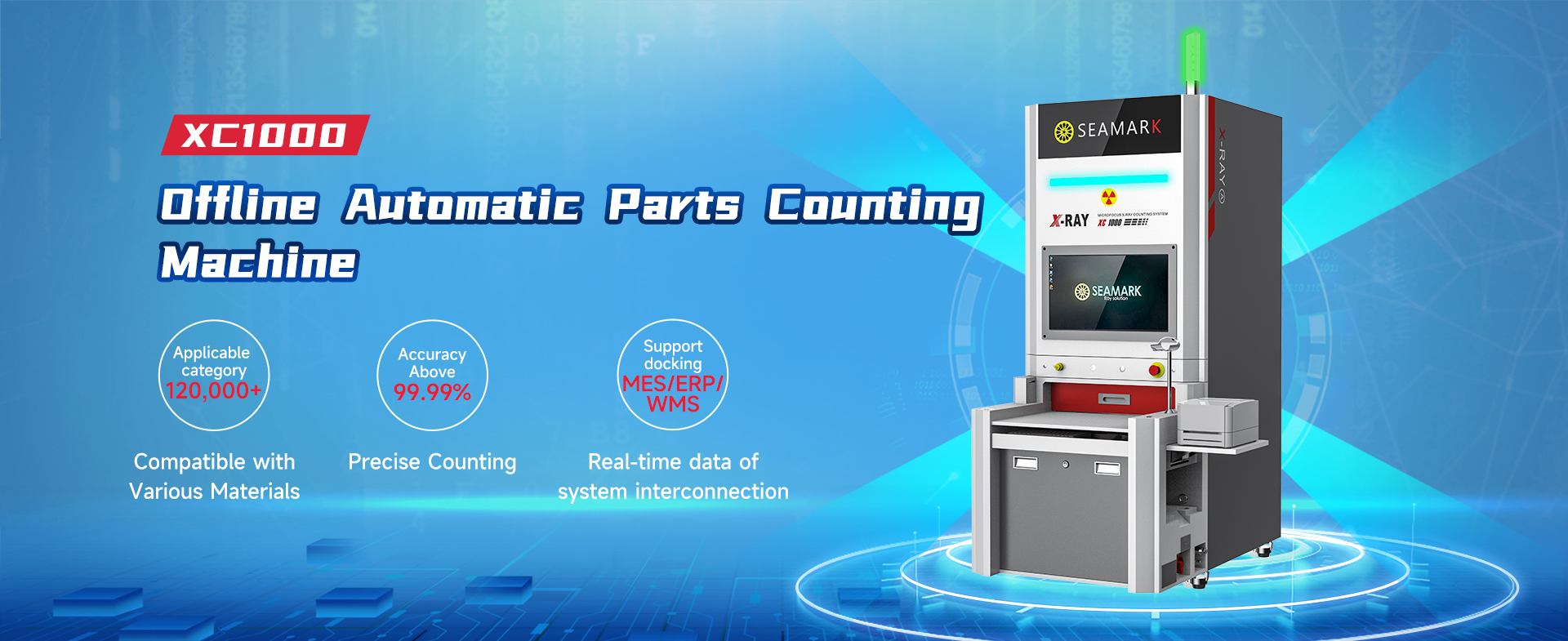

XC1000 is an offline automatic counting machine. The equipment design refers to ergonomics, easy to operate, and has multiple safety protections. lt occupies a small space and is easy to move the working position. The innovative self-developed Al intelligent counting algorithm software can count 4 trays at the same time, quickly and accurately calculate the material quantity, improve work efficiency, assist SMT intelligent warehousing, and save manpower investment.

产品特点

PRODUCT FEATURES

Compatible with various materials

Suitable for various types of SMD components, including SMD devices larger than 01005; supports materials such as 7-15 inch trays, trays, bulk materials, and IC moisture-sensitive packages
Automatic and accurate counting

AI intelligent counting algorithm software enables fast and accurate counting with a counting accuracy of up to 99.99%
Global Material Database

Already contains information on approximately 120,000 material types. We collect new material type and image data from around the world through the cloud, and regularly update the AI model for material selection every week.
Automatic label printing

Customizable printing templates, automatic label printing, and error-proofing for material labels

产品参数

SPECIFICATION

型号	XC1000
X-Ray Tube	X-ray Tube Type	Reflective Sealed Micro-focus X-ray Source
	Tube Voltage	30-80KV
	Tube Current	200-700μA
	Maximum Output Power	56W
	Micro Focus Size	33μm/100μm
Flat Panel Detector	Flat Panel Type	Amorphous Silicon Flat Panel Detector
	Pixel Matrix	3072x3072
	Field of View	427mm×427mm
	Resolution	3.6Lp/mm
	AD Conversion Digits	16bits
Equipment Specifications	Reel Size	7”-15”Tape Reel
	Reel Height	5-80mm
	Minimum Components	01005
	System Connection	MES/ERP/WMS etc.
	Label Printing	TSC Industrial Printers
	Input Power	220V 10A 50-60HZ
	Control System	Industrial Computer WIN 64 Bits
	Dimensions	L800mmxW1280mmxH2200mm
	Net Weight	790KG

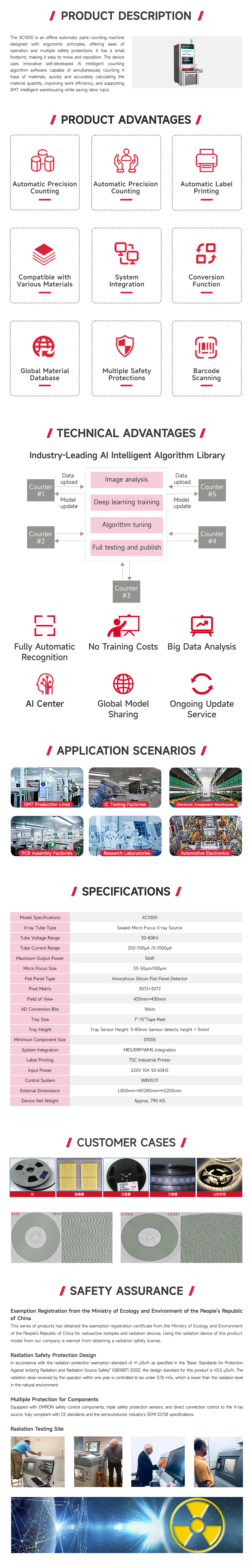

产品详情

Product Details
