产品介绍

PRODUCT INTRODUCTION

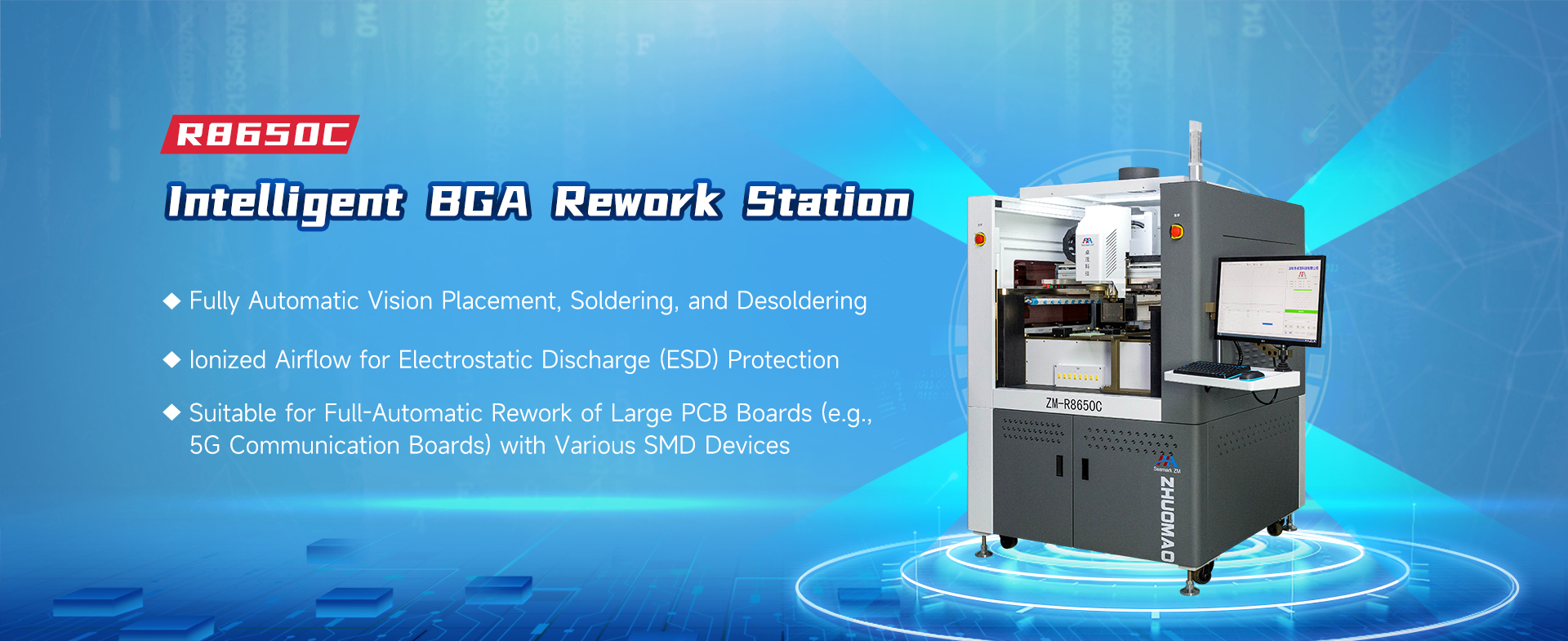

R8650C is a BGA rework station with automatic visual alignment. lt is suitable for automatic rework of various SMD devices on large PCB boards (such as 5G communication boards). lt can realize automatic visual placement, automatic soldering, full automatic rework Automatic desoldering function. lt can be connected with MES software (optional) to realize the functions of temperature curve analysis with S/N as the traceability condition.

产品特点

PRODUCT FEATURES

The multi-functional control features

Can achieve fully automatic visual mounting and fully automatic desoldering functions. It can be software integrated with SAP/ERP (optional) to realize the temperature curve analysis function with S/N as the traceability condition
Alignment accuracy

±0.025mm. High-precision K-type thermocouple with an accuracy of ±1℃. Dynamic PID multi-loop closed-loop control for selective reflow soldering process
Stable temperature control

Self-developed software system, achieving rapid positioning and stable temperature curves (with built-in curve analysis function), and simple operation settings
Independent control of three temperature zones

The upper and lower temperature zones are heated by convection hot air, and the lower temperature zone adopts a large-area heating wire layout, which is suitable for the rework of larger BGA. The infrared preheating zone is heated by German imported medium-wave ceramic infrared heating plates

产品参数

SPECIFICATION

型号	ZM-R8650C
Equipment Performance Parameters	Power Supply	AC380V±10% 50/60HZ
	Power	Total power 22KW Top zone (2KW) Buttom zone (2KW) Preheating zone (16KW) Other (2KW)
	PCB Size	660x600mm(Max); 10x10mm(Min)
	BGA Chip Size	100×100mm（Max）；1x1mm（Min）
	IR Temp. Zone Size	645x524mm
	Motion Control	X/Y/Z
	Temp. Sensor	8 PCS
	Control System	Industrial PC+Servo motion control system
	Display System	24“ HD display
	Alignment System	2 million visual alignment system
	Vacuum Adsorption	Full automatic
	Alignmenr Accuracy	±0.025mm
	Temp. Control	K-type thermocouple closed-loop control with accuracy up to ±1°C
	Feeding Device	Semi-automatic
	Positioning	L-groove and universal fixture (shaped fixture can be customized)
	Dimensions	L1235xW1557×H1850mm
	Weight	993.5KG

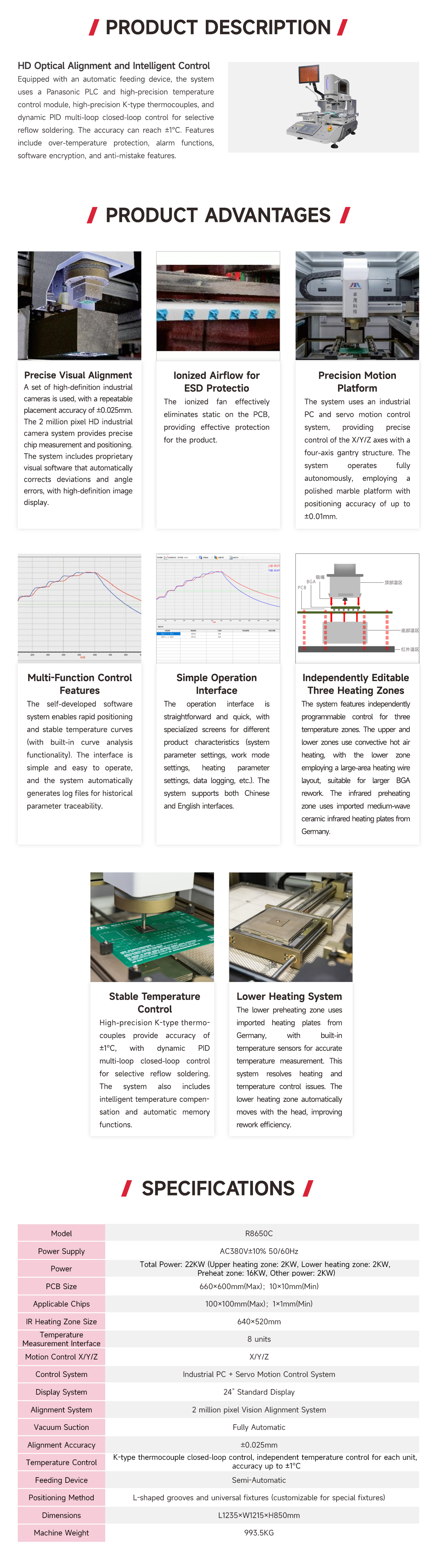

产品详情

Product Details
