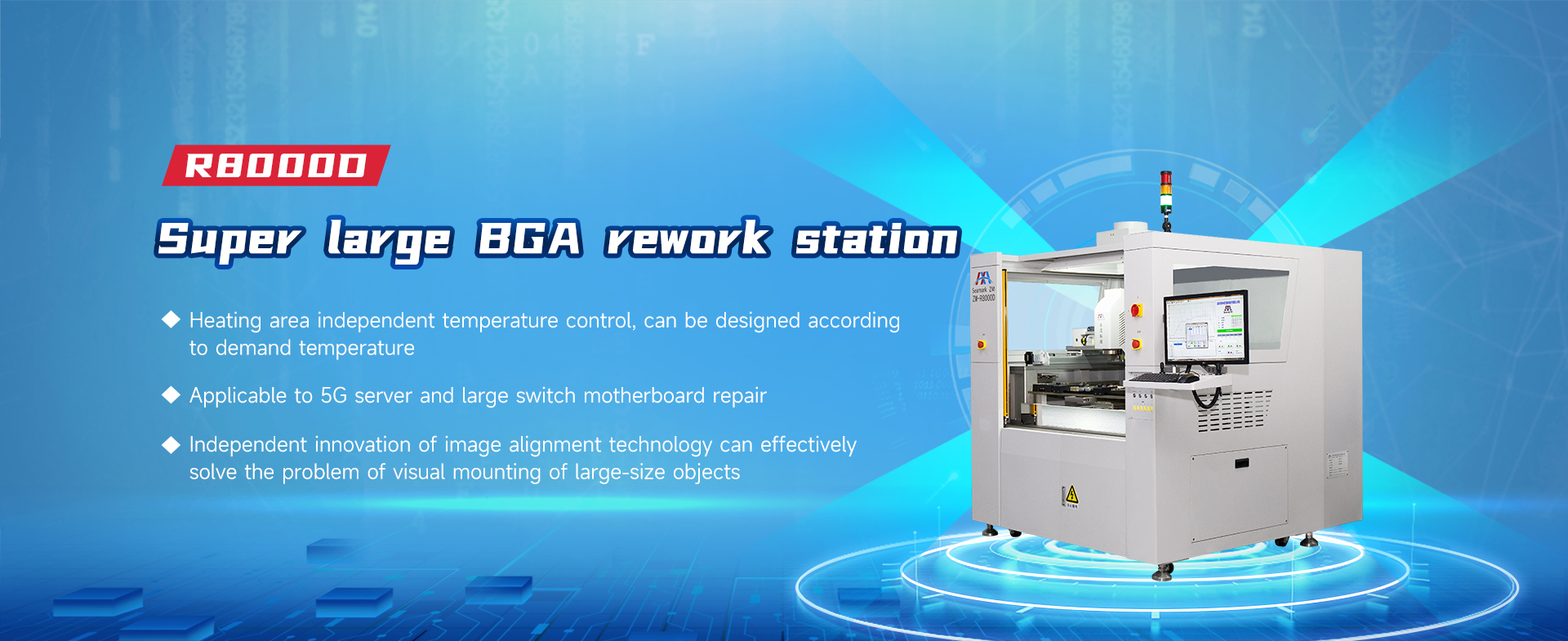

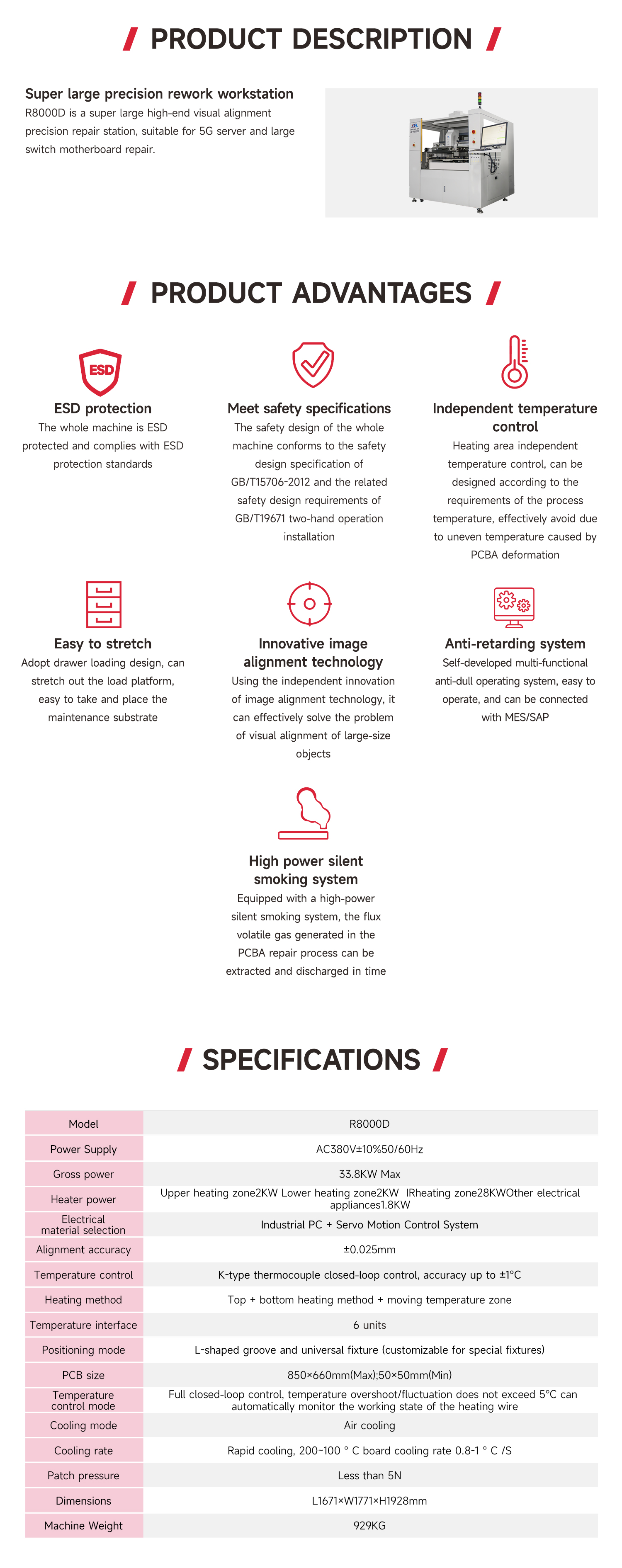

R8000D is a ultra-large high-end optical alignment precision rework station, suitable for rework of 5G server and large exchanger mainboards.

产品特点

PRODUCT FEATURES

ESD protection for the entire machine

The entire machine is ESD protected and complies with ESD protection standards
It can be connected to MES/SAP

The self-developed multi-functional fool-proof operating system is easy to operate and can be connected to MES/SAP
Silent smoking system

Equipped with a high-power silent smoke extraction system, the volatile gas of flux generated during the PCBA repair process can be promptly extracted and discharged
Image alignment technology

By adopting the independently innovative image alignment technology, the problem of visual alignment and mounting of large-sized objects can be effectively solved

SPECIFICATION

型号	ZM-R8000D
Equipment Performance Parameters	Power Supply	AC380V±10% 50/60HZ
	Total Power	33.8KW Max
	Power	Upper temperature zone(2KW) Lower temperature zone(2KW) IR temperature zone(28KW) Other power(1.8KW）
	Electrical material selection	Industrial PC+servo motion control system
	Alignment Accuracy	±0.025mm
	Temp. Control	K-type thermocouple closed-loop control with accuracy up to ±1°C
	Heating Method	Adopt top + bottom heating method + moving temperature zone
	Temp. Sensor	6 PCS
	IR Temp. Zone Size	950mmx700mm
	Positioning	L-groove and universal fixture (shaped fixture can be customized)
	PCB Size	850×660mm (Max) :50×50mm (Min)
	Temperature Control Mode	Full closed-loop control, with temperature overshoot/fluctuation not exceeding 5°C, and it can automatically monitor the working status of the heating wire
	Cooling Method	Air-cooled
	Cooling Rate	Rapid cooling, with a single board cooling rate of 0.8-1°C/S at 200-100°C
	Patch pressure	<5N
	Dimensions	L1672xW1771xH1900mm
	Weight	1075KG
