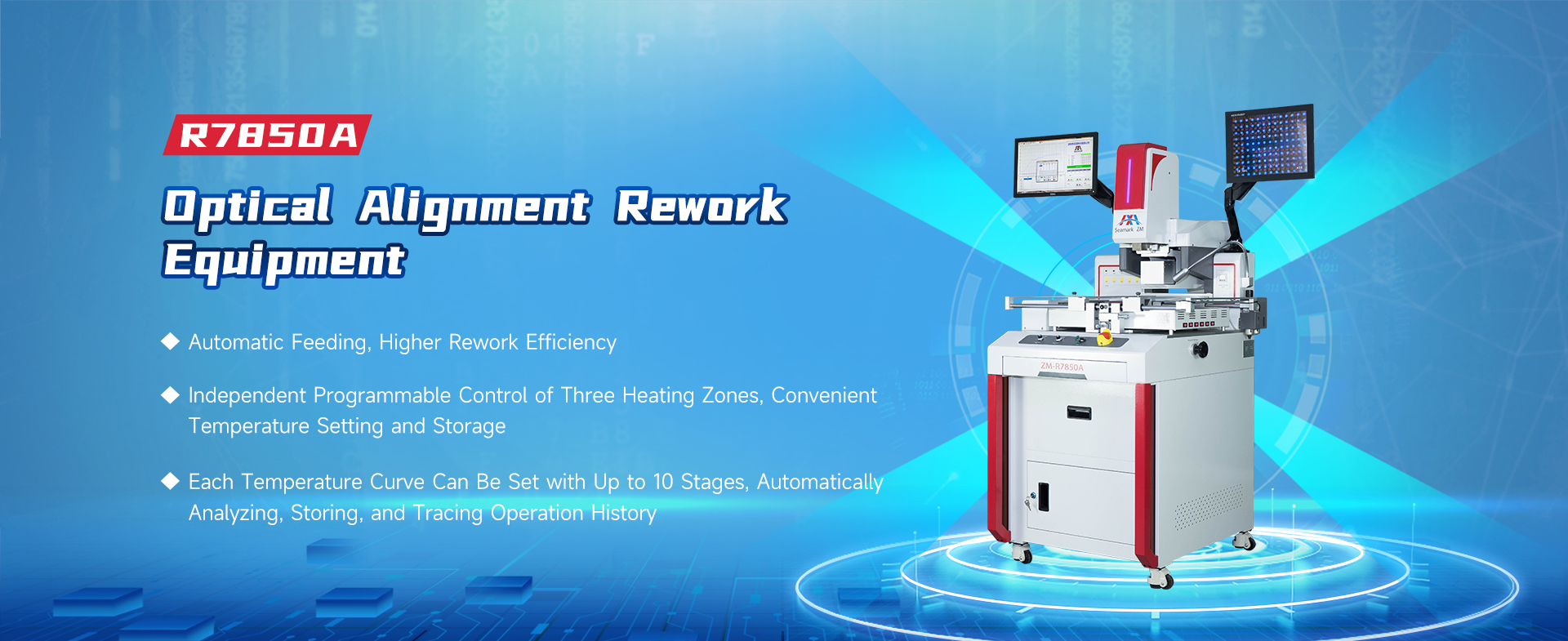

The ZM-R7850A is a multifunctional, floor-standing, PC-controlled optical alignment and automatic rework machine with the following features: a multi-language menu interface, convenient temperature setting and control, a high-definition optical alignment system with beam splitting, magnification, reduction, and fine-tuning capabilities, and a high-precision temperature control sensor system for precise temperature control.
| 型号 | R7850A | |
|---|---|---|
| Equipment performance parameters | Power Supply | AC380V±10% 50/60HZ |
| Power | 9.85KW (Max) Top zone (1.45KW) Bottom zone (1.2KW) Preheating zone (6.6KW) Other (0.6KW) | |
| PCB Size | 632x520mm(Max); 6x6mm(Min) | |
| BGA Chip Size | 80x80mm(Max) ；2x2mm (Min) | |
| IR Temp. Zone Size | 565x435mm | |
| Temp. Sensor | 5 PCS | |
| Control System | Industrial PC + motion control system | |
| Motion Control | X/Y/Z | |
| Display System | 15\\ | |
| Vacuum Adsorption | Automatic | |
| Alignment System | 2m high-definition digital imaging system, automatic optical zoom + laser red dot indicator | |
| Alignmenr Accuracy | ±0.01mm | |
| Temp. Control | K-type thermocouple closed-loop control with accuracy up to ±1°C | |
| Feeding Device | Yes | |
| Positioning | V-groove and universal fixture (shaped fixture can be customized) | |
| Dimensions | L835xW960×H1640mm | |
| Weight | 218.5KG |
