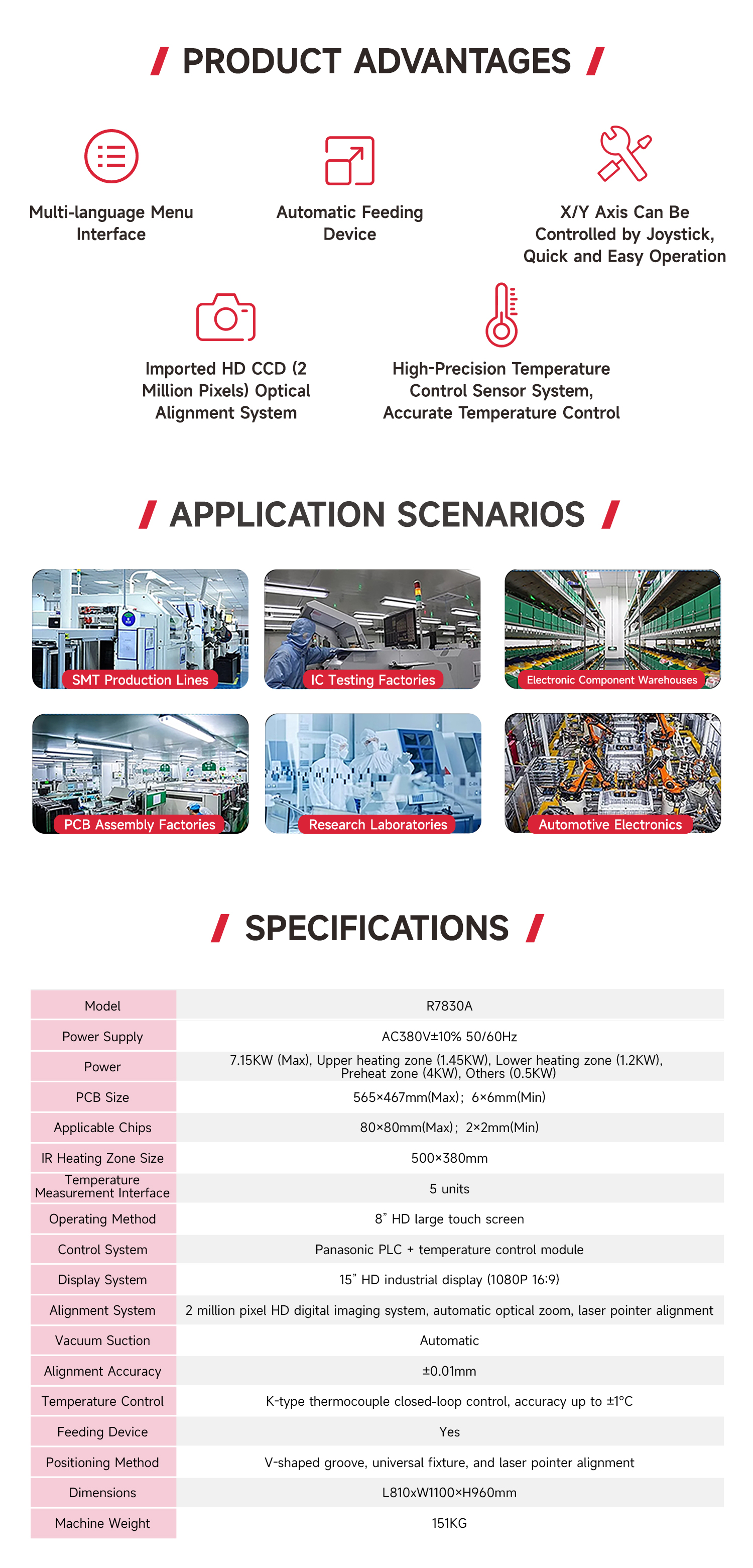

The ZM-R7830A is a cost-effective, general-purpose optical alignment and automatic rework equipment with the following features: a multi-language menu interface, automatic feeding, joystick control of the optical alignment mechanism's x/y axes for quick and easy operation, a high-definition optical alignment system with beam splitting, magnification, reduction, and fine-tuning capabilities, and automatic color resolution and brightness adjustment. A high-precision temperature control sensor system ensures precise temperature control.
| 型号 | ZM-R7830A | |
|---|---|---|
| Equipment Performance Parameters | Power Supply | AC380V±10% 50/60HZ |
| Power | 7.15KW (Max) Top zone (1.45KW) Buttom zone (1.2KW) Preheating zone (4KW) Other (0.5KW) | |
| PCB Size | 565x467mm(Max); 6x6mm(Min) | |
| BGA Chip Size | 80x80mm（Max) ；2x2mm (Min) | |
| IR Temp. Zone Size | 500x380mm | |
| Motion Control | X/Y/Z | |
| Temp. Sensor | 5 PCS | |
| Operation Method | 8“ HD large touch screen | |
| Control System | Panasonic PLC + Temp. control module | |
| Display System | 15“ HD industrial display screen(1080P 16:9) + 18.5\\\\\\\\\\\\\\\\ | |
| Alignment System | 2m high-definition digital imaging system, automatic optical zoom + laser red dot indicator | |
| Vacuum Adsorption | Automatic | |
| Alignment Accuracy | ±0.01mm | |
| Temp. Control | K-type thermocouple closed-loop control with accuracy up to ±1°C | |
| Feeding Device | Yes | |
| Positioning | V-groove and universal fixture (shaped fixture can be customized) | |
| Dimensions | L810xW100×H960mm | |
| Weight | 151KG |
