产品介绍

PRODUCT INTRODUCTION

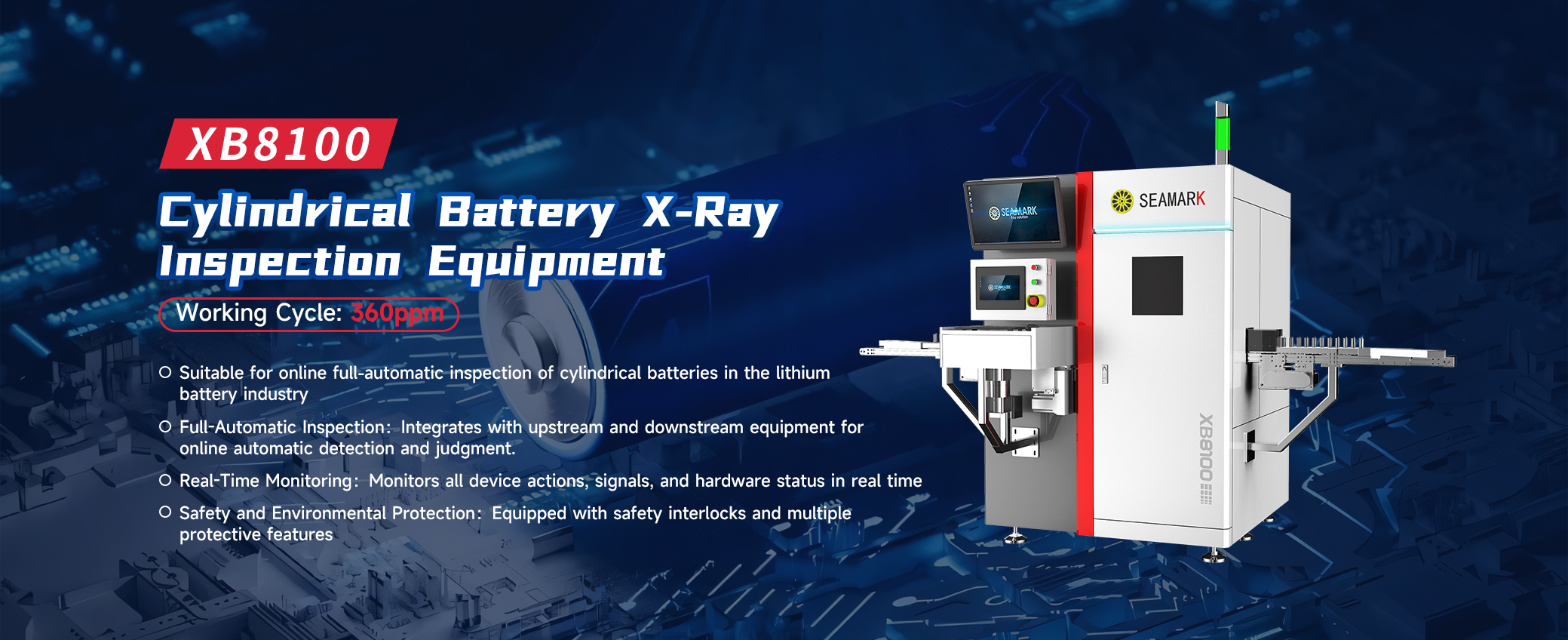

XB8100 enables fully automatic inline inspection of various models of cylindrical batteries. It integrates with upstream and downstream logistics lines, allowing for efficient transfer of items for inspection. lt automatically sorts out defective(NG) products and outputs acceptable (OK) products to the output logistics line, which then enters downstream equipment (optional automatic reflow for secondary retesting).

产品特点

PRODUCT FEATURES

Full automatical inspection

Connect upstream and downstream equipment, inline automatic inspection and judgment, automatic sorting out defective products; built-in in-place retest function, optional automatic return retest function
Real time monitoring

All actions, signals and hardware status of the equipment are monitored in real time to facilitate product quality data analysis and production safety control
Safety and environment

The equipment has safety interlock and multiple protection functions, and any part of the fuselage surface meets national safety radiation standards
Image and inspection data

The inspection image and data of the battery are saved together and can be displayed together in the software interface for convenient viewing and analysis

产品参数

SPECIFICATION

型号
X-ray Tube	X-ray Tube Type	Reflection-sealed Micro-focus X-Ray Source
	Tube Voltage Range	130KV
	Tube Current Range	300μA
	Maximum Output Power	39W
Flat Panel Detector	Micro-focus Size	5-15μm
	Flat Panel Type	Line-array TDI Detector
	Field of View	205mmx6mm
	Resolution	5Lp/mm
	AD Conversion Bits	16bits
Equipment Specifications	Inspection Accuracy	15μm
	Repeatability Accuracy	±30μm
	Inspection Efficiency	≥200ppm
	False Positive Rate	≤1.5%
	False Negative Rate	0.0%
	Product Pass Rate	≥99.5%
	Input Power	3-phase 80V/50HZ approx. 4500W
	Control System	Industrial Computer WIN 64-bit
	International Radiation Safety Standard	≤1usv/hr
	Inspection Range	14450/18650/21700/26650/32700/4680
	Dimensions	L5000xW1800xH1900
	Net Weight	4000KG

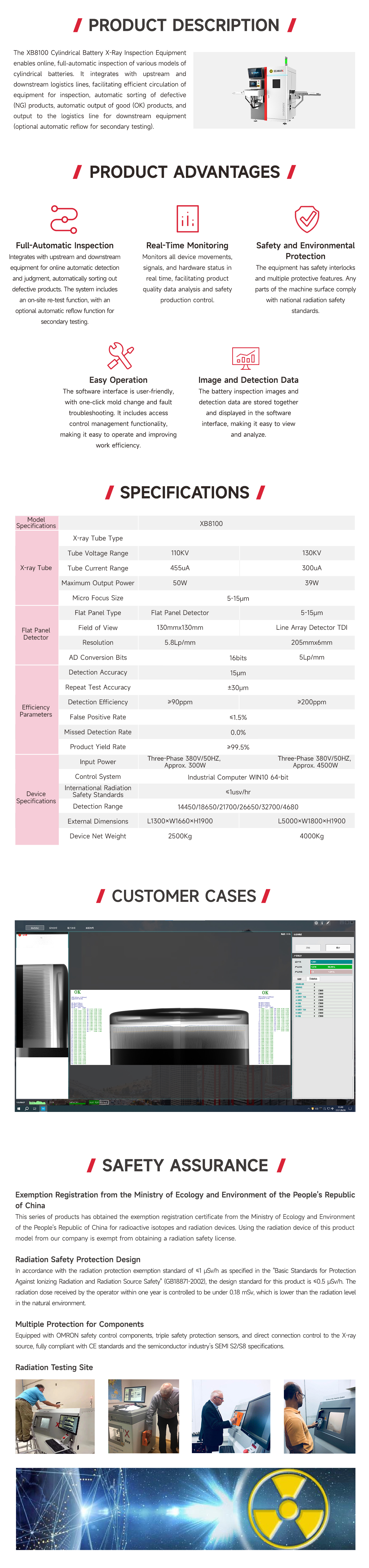

产品详情

Product Details
