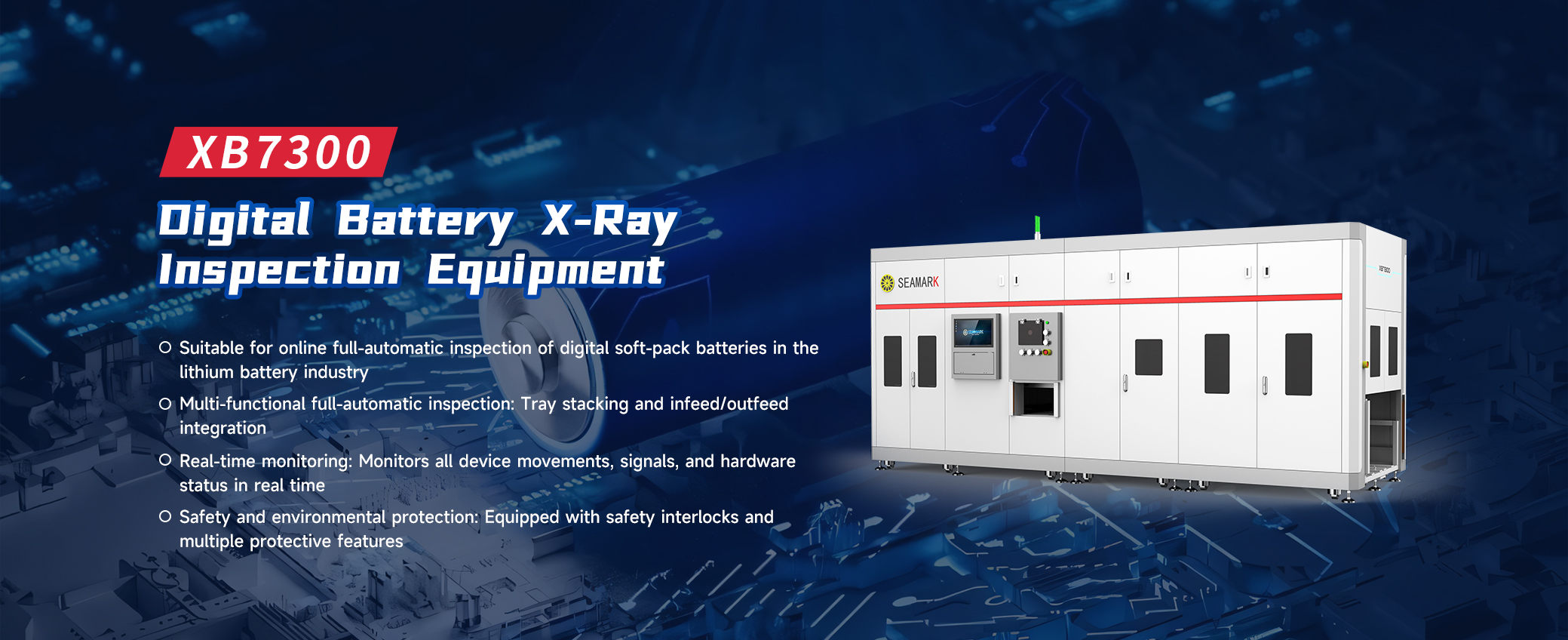

XB7300 digital battery X-ray inspection equipment is designed for fully automatic inline inspection of digital soft-pack batteries. lt features tray stacking and feeding integration, allowing for automatic battery picking, placement into the system for inspection,automatic sorting of NG(defective) products, automatic removal of OK(pass)products, and unloading via blister packaging.
| 型号 | ||
|---|---|---|
| Equipment Specifications | Dimensions | 8500x3200x2800mm |
| Cycle Time | ≥30PPM or above (2corners or 4 corners) | |
| Yield Rate | ≥99.5% | |
| Equipment Failure Rate (DT) | ≤2% | |
| Overkill Rate | ≤1% | |
| Missed Kill Rate | ≤0% | |
| Voltage Measurement Accuracy | ±(0.0035%rdg.+0.0005%fs) | |
| Internal Resistance Measurement Accuracy | ±(0.5%rdg.+0.10mΩ) | |
| Radiation Safety Standard | ≤1uSV/hr | |
| Receiver | Flat Panel Detector | |
| Thickness Measurement | Measurement accuracy ±0.02mm | |
| Exposure Time | ≥0.7S | |
| X-ray Tube | Tube Voltage | 40-90KV/40-130KV |
| Tube Current | 10-200μA/10-300μA | |
| Inspection Efficiency and Accuracy Parameters | Inspection Accuracy | 15μm |
| Repeatability Accuracy | ±30μm |
