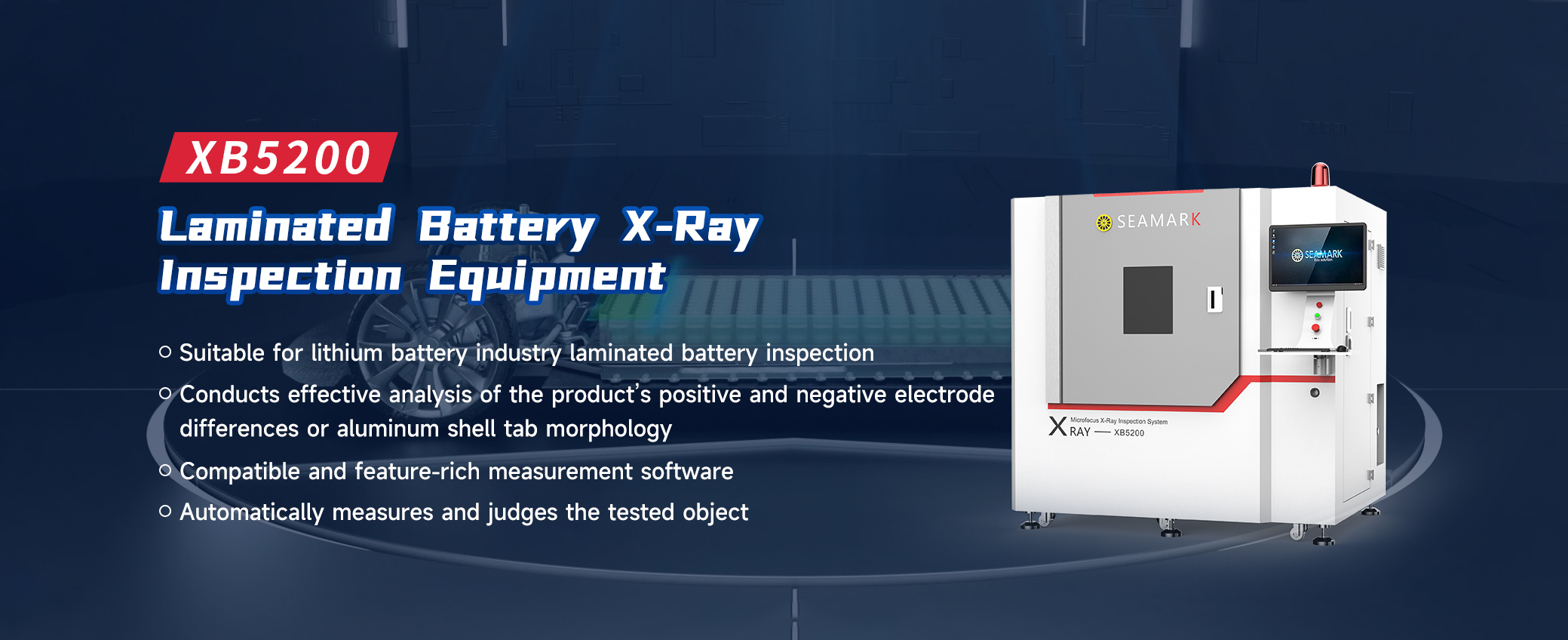

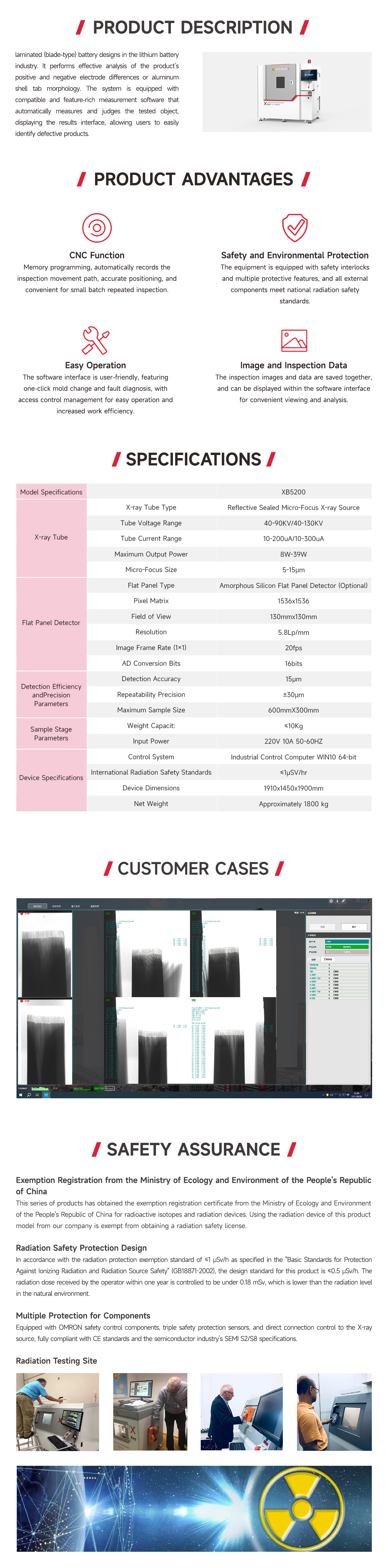

XB5200 stacking battery X-ray inspection equipment is suitable for the inspection of stacking (blade) process type batteries in the lithium battery industry, and conducts effective analysis of the extreme difference between the positive and negative poles of the product or the shape of the aluminum shell pole ear; it is equipped with highly compatible and fully functional measurement software, automatically measures and automatically judges the object being measured, and displays the judgment result interface, so that users can easily pick out defective products.
| 型号 | ||
|---|---|---|
| X-Ray Tube | X-ray Tube Type | Reflective Sealed Micro-focus X-ray Source |
| Tube Voltage | 40-90KV/40-130KV | |
| Tube Current | 10-200μA/10-300μA | |
| Maximum Output Power | 8W-39W | |
| Micro Focus Size | 5-15μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 1536x1536 | |
| Field of View | 130mmx130mm | |
| Resolution | 5.8Lp/mm | |
| Image Frame Rate (1×1) | 20fps | |
| AD Conversion Digits | 16bits | |
| Inspection Efficiency and Accuracy Parameters | Inspection Accuracy | 15μm |
| Repeatability Accuracy | ±30μm | |
| Platform Parameters | Maximum Sample Size | 600x300mm/900x300mm |
| Loading Weight | ≤10Kg | |
| Equipment Specifications | Input Power | 220V 10A 50-60HZ |
| Control System | Industrial Computer Win10 64 bits | |
| International Radiation Safety Standard | ≤1uSV/hr | |
| Dimensions | 1600x1162x2000mm/1910x1450x1900mm | |
| Net Weight | 1600kg/1800kg |
