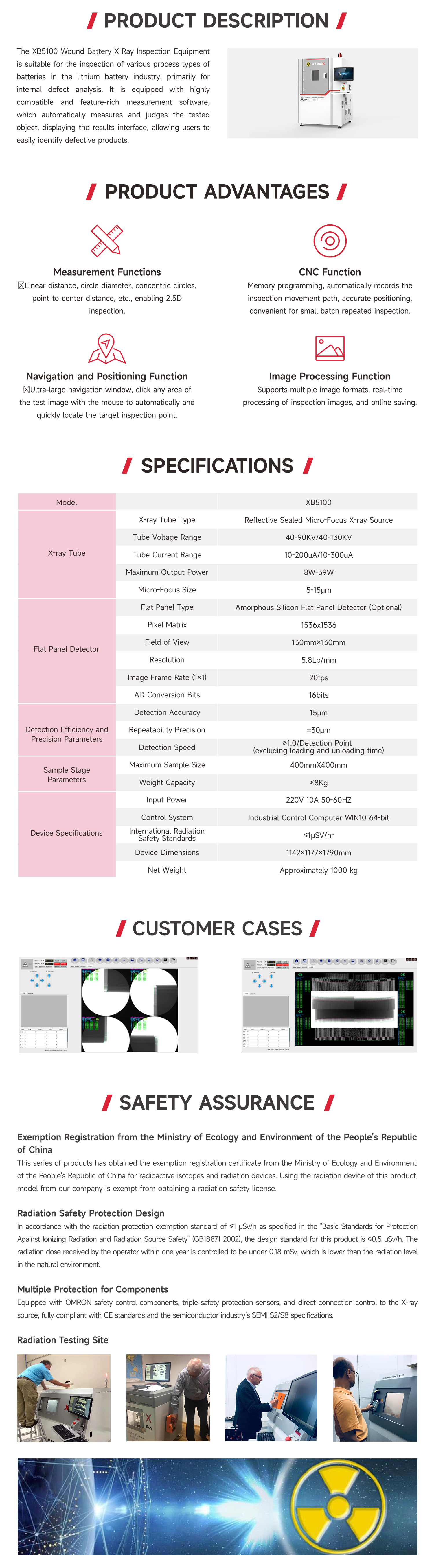

XB5100 winding battery X-ray inspection equipment is designed for inspecting various types of batteries in the lithium battery industry. It primarily analyzes internal defects of the product effectively. The device is equipped with highly compatible and feature-rich measurement software, which automatically measures and judges the test object, displaying the judgment results interface for easyidentification of defective products by users.
| 型号 | ||
|---|---|---|
| X-Ray Tube | X-ray Tube Type | Reflective Sealed Micro-focus X-ray Source |
| Tube Voltage | 40-90KV/40-130KV | |
| Tube Current | 10-200μA/10-300μA | |
| Maximum Output Power | 8W-39W | |
| Micro Focus Size | 5-15μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 1536x1536 | |
| Field of View | 130mmx130mm | |
| Resolution | 5.8Lp/mm | |
| Image Frame Rate (1×1) | 20fps | |
| AD Conversion Digits | 16bits | |
| Inspection Efficiency and Accuracy Parameters | Inspection Accuracy | 15μm |
| Repeatability Accuracy | ±30μm | |
| Inspection Rate | ≥1.0/Inspection point (excluding loading and unloading time) | |
| Platform Parameters | Maximum Sample Size | 400mmx400mm |
| Loading Weight | ≤8Kg | |
| Equipment Specifications | Input Power | 220V 10A 50-60HZ |
| Control System | Industrial Computer Win10 64 bits | |
| International Radiation Safety Standard | ≤1uSV/hr | |
| Dimensions | 1142x1177x1790mm | |
| Net Weight | 1000KG |
